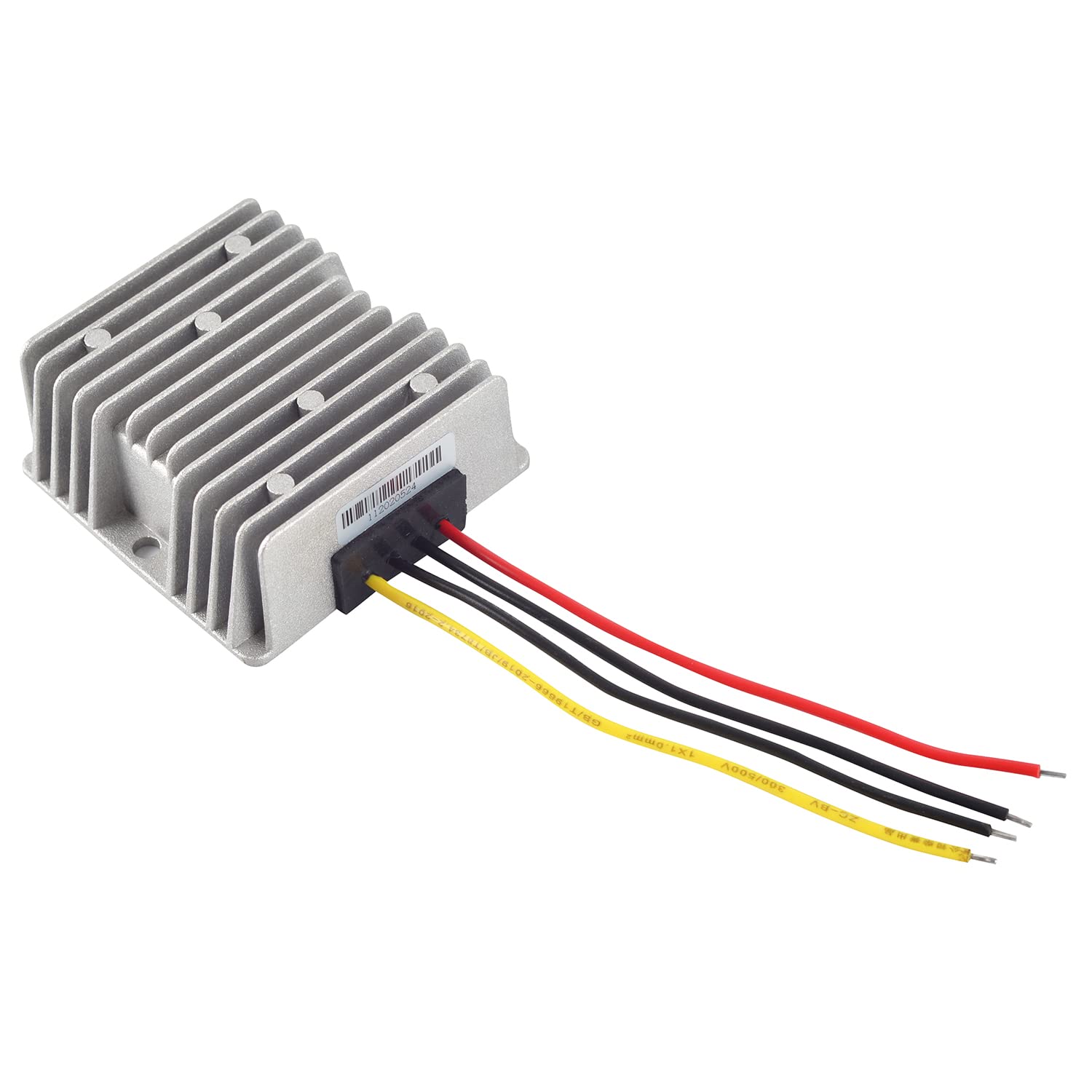

24V 12V to 36V Step Up Converter DC-DC Regulator Boost Power Supply Input(9V-30V) Waterproof Module Transformer for GolfCart Motor Car Truck Vehicle Boat Solar E-Bike (8A-288W)

Parameters:Input voltage Range: DC 9V~30VOutput voltage: DC 36VOutput Current: 8AOutput power: 288W (MAX)Maximum working temperature: 80℃Size: 4* 2 *3 inches / 74*74*32mmWaterproof : IP67Net weight: 3.88oz / 0.11kgCertificates：CE P>Features:Over-Voltage ProtectionOver-Current ProtectionOver-Temperature Protection 95℃Short-circuit ProtectionHigh conversion efficiency: Typical values 93%Voltage stability:<1%Load stability:<1%Storage temperature:-40℃ - 60℃Widely used in automotive,New energy vehicle,Golf cart,electric scooter,Electric motorcycle,Electric bicycle,electricity, surveillance systems, railway signals, instruments and meters,LED light,LED displays, cable TV, ectWiring:Red: Input +Black: Input -Yellow: Output +Black: Output -Package includes:1x 9V-30V to 36V 8A Step Up DC DC Converter

• Applications: It is widely used in various 36V electronic equipment,golf cart, photovoltaic, electric power, monitoring system, automobile, electric bicycle motorcycle scooter, LED, instrument,car audio,car refrigerator, car washing machine, car alarm, car navigation, etc.This voltage converter does not have a constant current and cannot be used for charging
• Features: This product is a kind of constant voltage converter, which is used to step up the low voltage DC to high voltage DC.The product has the characteristics of small volume, light weight, high efficiency, no noise and no radiation.Synchronous Rectification Technology, multiple intelligent protection functions, conversion efficiency up to 93%, good stability and easy installation.
• Specifications: Input voltage: 9V-30V; Output voltage: 36V; Power 288W Max ,Current 8A,Working temperature: -40°C-85°C,Protection: High quality aluminum shell, Fast heat dissipation. Built in Overload, Overcurrent, Overvoltage, Overtemperature and Short circuit protection, IP67 waterproof and shockproof, and can return to normal state during operation
• Installation: Easy to install, just connect the red and black power wires directly to the battery(Red : Input + Black : Input -). Please pay attention to the positive and negative poles when connecting the power supply.The yellow wire connects to the positive pole of the electrical device, and the blue wire or another black wire connects to the negative pole of the electrical device.
• Package includes: 1 x 36V 8A Step-Up Converter,Precision manufacturing, excellent performance, one-year warranty, worry free after-sales and rapid response
